725963-2
Manufacturer:
TE Connectivity
Mfr.Part #:
725963-2
Datasheet:
Description:

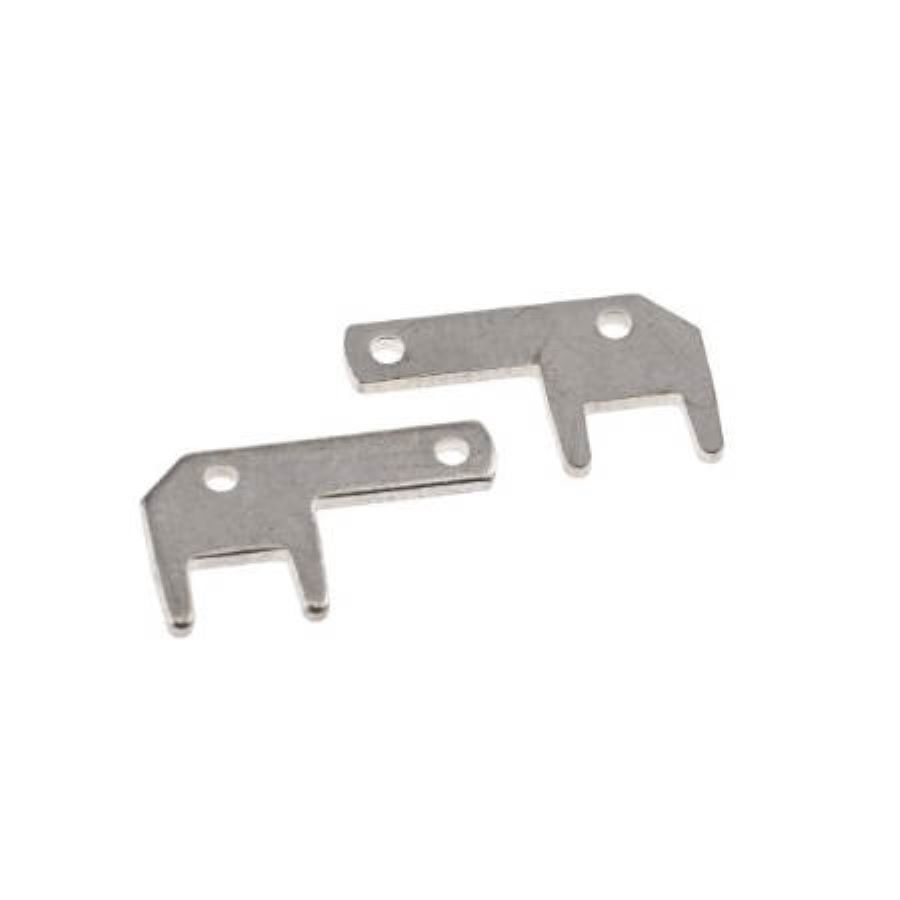

Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 13.4 mm |
| Termination | Standard |
| Height | 5 mm |
| Material | Brass |
| Packaging | Box |
| Depth | 8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Type | Tab |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| Body Material | Brass |
| Tab Width | 2.794 mm |
| Hole Diameter | 1.4 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Copper |
| Plating Thickness | 4.5 µm |
| Mating Tab Width | 2.794 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Stud Size | 2.8 mm x 0.81 mm |
